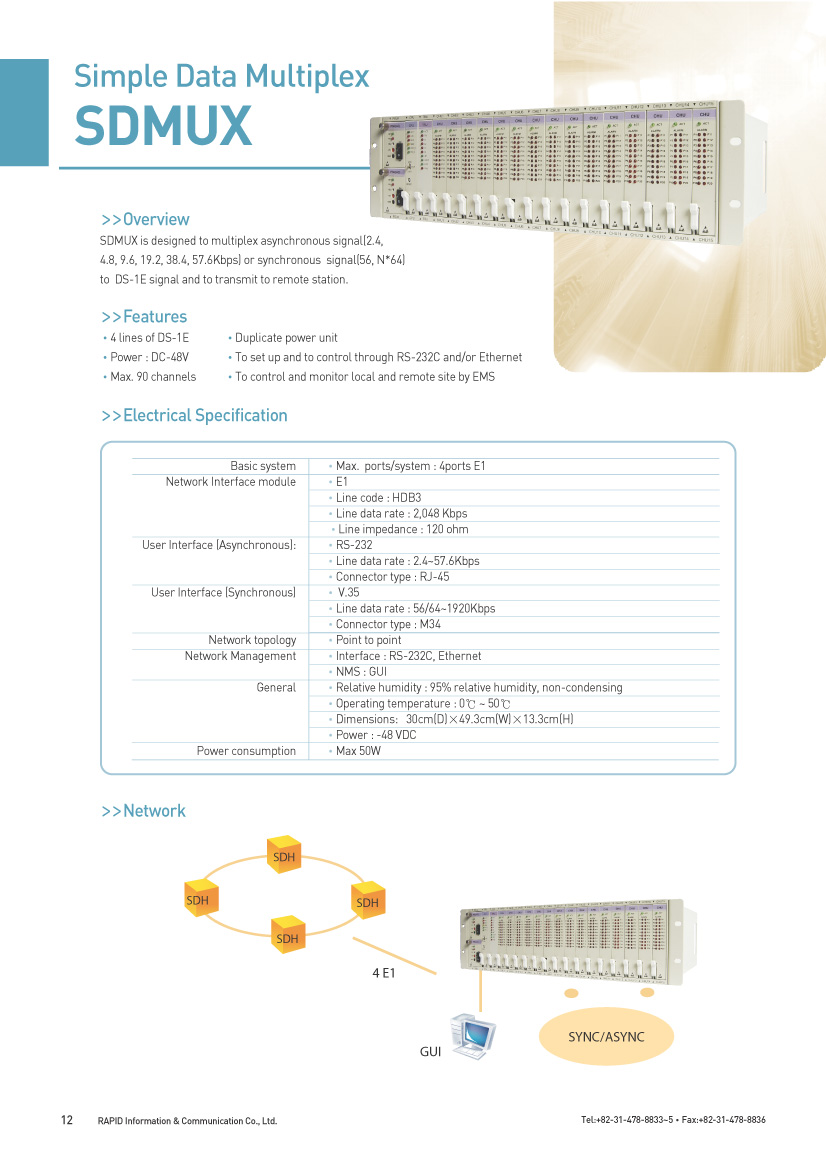

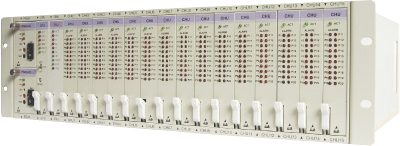

SDMUX (Simple Data Multiplex)
NARAJANGTOH Identification Number:
SDMUX is designed multiplex asynchronous signal(2.4, 4.8, 9.6, 19.2, 38.4, 57.6Kbps) or synchronous signal(56, N*64) to DS-1E signal and to transmit to remote station
Features • 4 lines of DS-1E
• Duplicate power unit
• Power : DC-48V
• to set up and to control throungh RS-232C and\or Ethernet
• Max. 90 channels
• to control and to manage local and remote site by EMS
| Electrical Specification | |
| Basic system | Max. ports/system : 4ports E1 |
| Network Interface module | E1 |
| Line code : HDB3 | |
| Line data rate : 2,048Kbps | |
| Line impedance : 120ohm | |
| User Interface (Asynchronous): | RS-232 |
| Line data rate : 2.4~57.6Kbps | |
| Connector type : RJ-45 | |
| User Interface (Synchronous): | V.35 |
| Line data rate : 56/64~1920Kbps | |
| Connector type : M34 | |
| Network topology | point to point |
| Network Management | interface : RS-232C, Ethernel |
| NMS : Gul | |
| General | Relative humidity : 95% relative humidity, non-condensing |
| Operation temperature : 0℃~50℃ | |
| Dimensions : 30cm(D) X 49.3cm(W) X 13.3cm(H) | |
| Power : -48VDC | |
| Power consumption | Max 50W |
