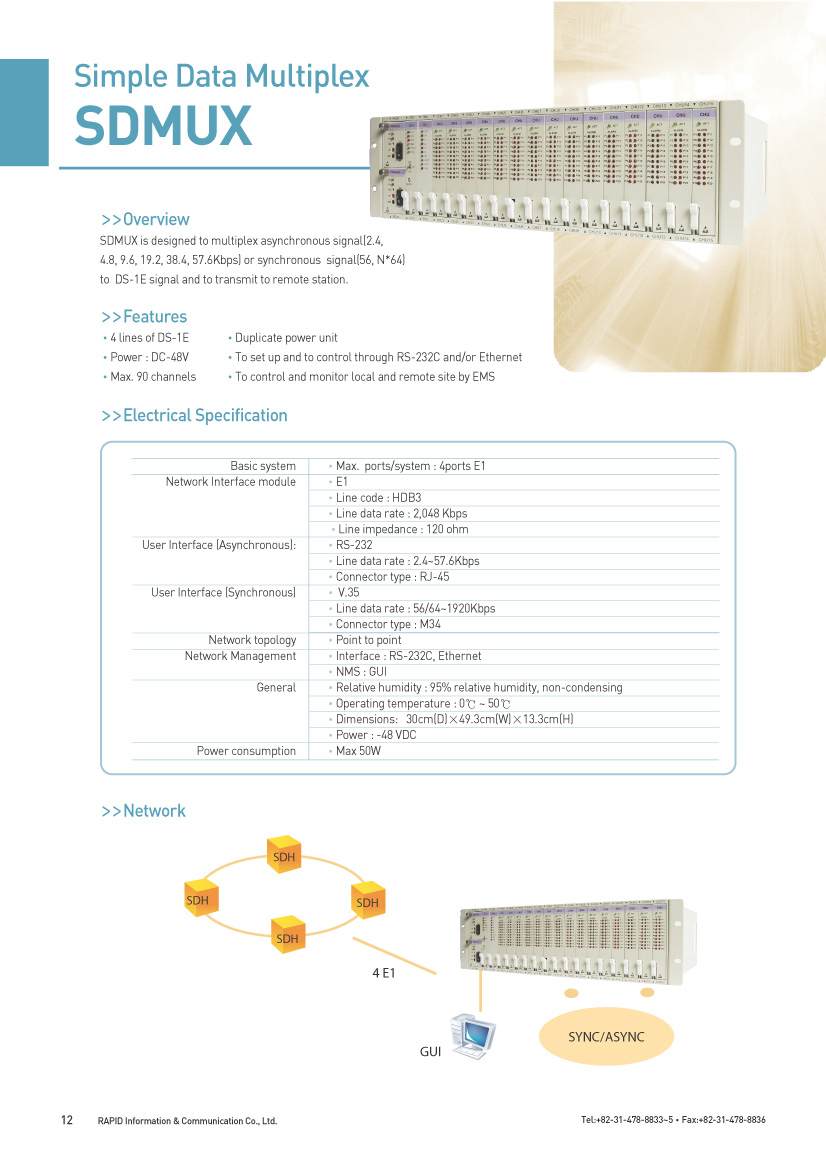

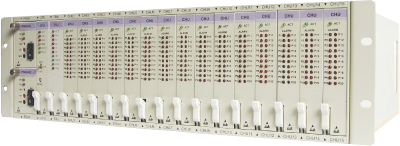

SDMUX (Simple Data Multiplex) NARAJANGTOH Identification Number:

SDMUX is designed to multiplex asynchronous signal (2.4, 4.8, 9.6, 19.2, 38.4, 57.6Kbps) or sychronous signal(56, N*64) to DS-1E signal and to transmit ti remote station.

Electrical Specification

Basic system    Max. ports/system : 4ports E1

Network Interface module    E1

Line code : HDB3

Line data rate : 2,048Kbps

Line impedance : 120ohm

User Interface (Asynchronous):    RS-232

Line data rate : 2.4~57.6Kbps

Connector type : RJ-45

User Interface (Synchronous):    V.35

Line data rate : 56/64~1920Kbps

Connector type : M34

Network topology    point to point

Network Management    interface : RS-232C, Ethernel

NMS : Gul

General    Relative humidity : 95% relative humidity, non-condensing

Operation temperature : 0℃~50℃

Dimensions : 30cm(D) X 49.3cm(W) X 13.3cm(H)

Power : -48VDC

Power consumption    Max 50W
